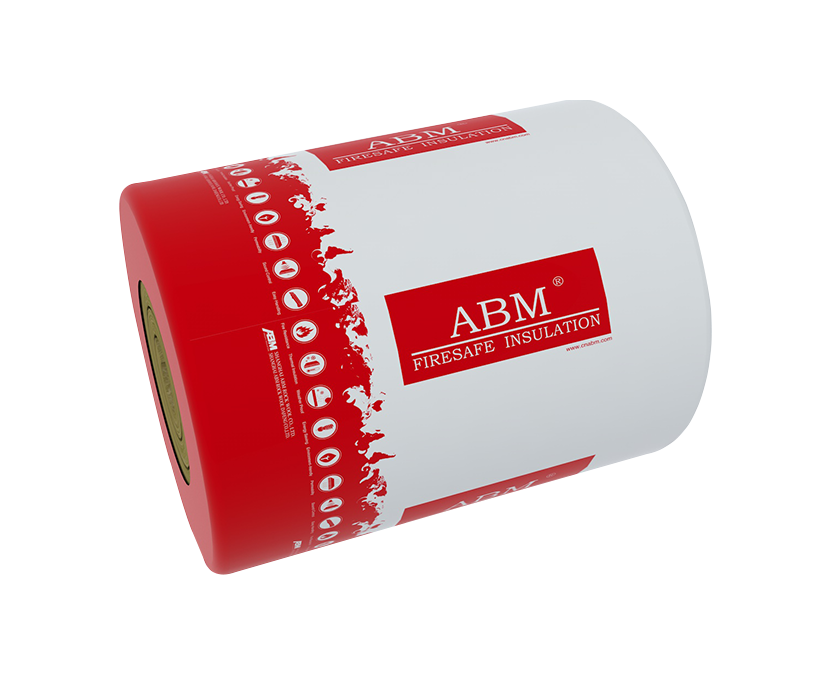

ABM? Marine Lamella Mat(MLM series) is made of lamellas cut from slabs in the length direction attaching with some facing materials such as glass tissue, aluminium foil or aluminium glass cloth(ALGC). The majority of the fibers are perpendicular to the facing.
Products Type | MLM70 |
Nominal Density，kg/m3 | 70 |
Thickness*，mm | 25, 50, 75,100 |
Size(LxW)* , mm | 1820×605, 2000×1200 |
*Other size or density may be available on request.
Properties | Value | Unit | Standard | |
MLM 70 | ||||
Thermal Conductivity | 10℃ | ≤0.037 |
W/(m ? K) | GB/T10295 EN 12667 ASTM C518 |
70℃ | ≤0.048 | |||
Fire Classification | Non-combustible for lamella Low- flame spread for facings | -- | IMO A.799(19) IMO A. 653(16) | |
Max Service Temperature | 450℃ for lamella 80℃ for facings |
℃ | ASTM C411 | |
Melting Point | ≥1000 | ℃ | -- | |
Water Repellent* | ≥99 | % | GB/T 10299 | |
Moisture Absorption* | ≤0.02 | Vol% | ASTM C1104M | |
Compression Strength | 15 | kpa | EN 826 | |
Environment | Asbestos free, no CFCs, HCFCs, HFCs | -- | -- | |
Other properties conform to GB/T 11835-2007 or JIS A9504-2011;
*Refer to water repellent products only.
ABM-SR-MLM70 is not only very flexible but also with good compression strength , can be easily installed on pipes, ducts, tanks and other curve surfaces.
ABM has prepared a variety of facings for different products. In most cases, these facings can protect the product and enhance its performance. Customers can choose the facing base on personal demands.
The EGF-20210 is strong enough to protect insulation materials and prevent the dust spread to the environment with its high density
AG-10701 is composited with Aluminium foil and glass cloth, has good tensile strength, dust-free and nice outlook.
AL-30150 is a reinforced aluminum surface can provide the best solution on vapour barrier. It can protect the insulation materials and steel from vapour which will damage the insulation properties and cause the corrosion.
Contact us, ABM professional sales service team is ready for you .
